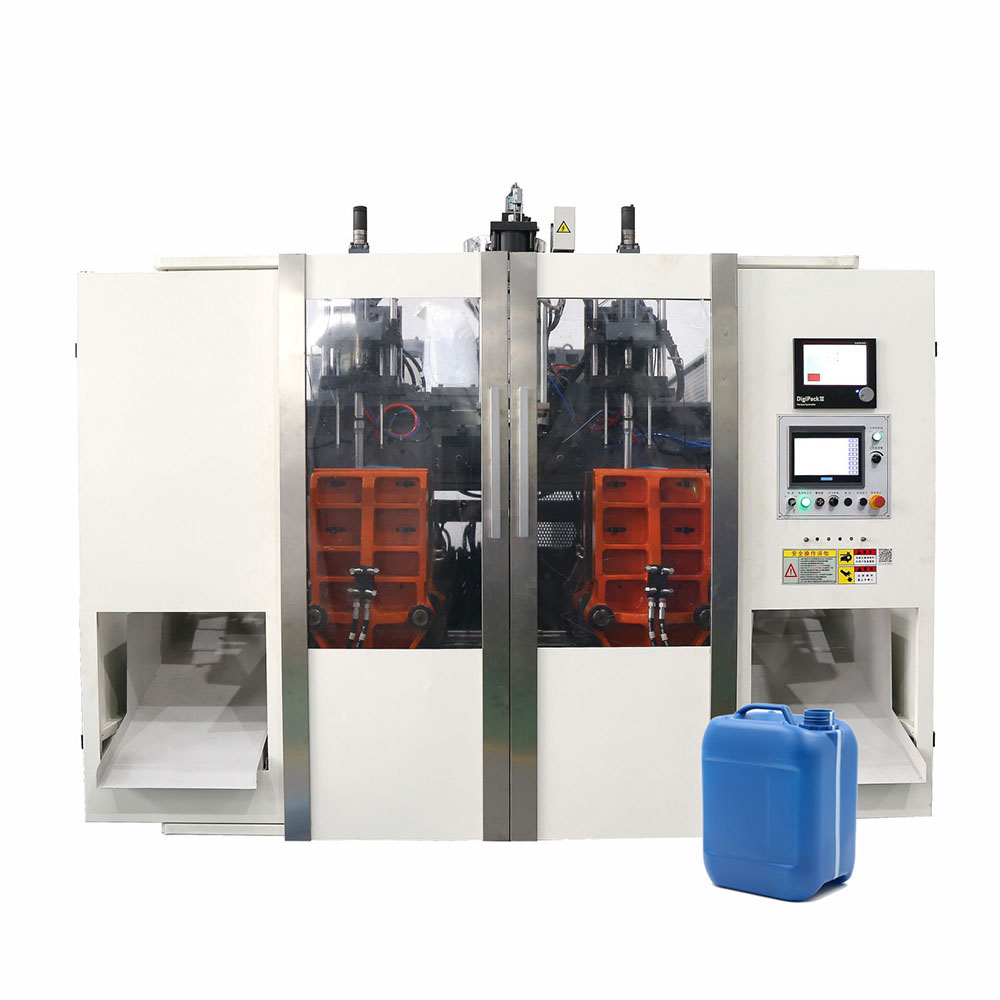

12L PE Bottle High Speed Automatic Blow Moulding Machine HDPE Bottle Blowing Machine
Product Description

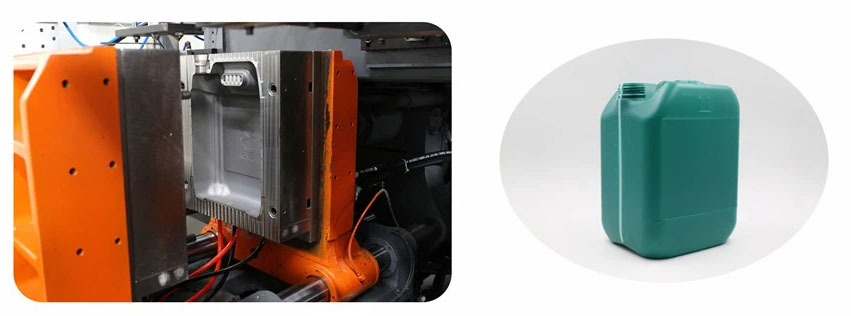

This is our normal series machine.It is double station.This machine is suitable for the stacking product,jerry can.It can be equipped with several die-heads and then it is also suitable for small product.
The main parts of this machine are designed and manufactured by ourself.We do the independent R&D and inspection.If you have other special requirements,we can provide customized services for you.
| Model | Units | SX-12L |
| Specification | ||
| Station | Single/Double | Double |
| Max.product volume | L | 12 |
| Dry cycle | pc/h | 700*2 |
| Output of HDPE | kg/h | 130 |
| Weight of machine | kg | 11000 |
| Size of machine(L*W*H) | m | 4.3*2.96*3.1 |
| Die head | ||
| Max.die diameter(single head) | mm | 200 |
| Die head heating power(single head) | kw | 9.1 |
| Die head heating zone(single head) | - | 3 |
| Central distance of Bi-head | mm | 240,260 |
| Central distance of 6-head(4-head) | - | - |
| Max.die diameter(double head) | mm | 120 |
| Die head heating zone(double head) | - | 7 |
| Die head heating power(double head) | kw | 15 |
| Clamping Unit | ||
| Platen distance | mm | 240~620 |
| Mold moving stroke | mm | 550 |
| Clamping force | kn | 158 |
| Extruder Unit | ||
| Screw diametre | mm | 90 |
| Screw length/diametre ratio | - | 25 |
| Screw heating power | kw | 17.4 |
| No.of heating zone(screw) | - | 4 |
| Power Unit | ||
| Oil pump motor power | kw | 15 |
| Screw motor power | kw | 37 |
| Total power | kw | 78.5 |
| Remarks | ||
| Air consumption | m³/min | 0.8 |
| Blow pressure | Map | 0.6 |
| Cooling water pressure | Map | 0.3 |
| Water consumption | L/min | 60 |
